Reference data reference

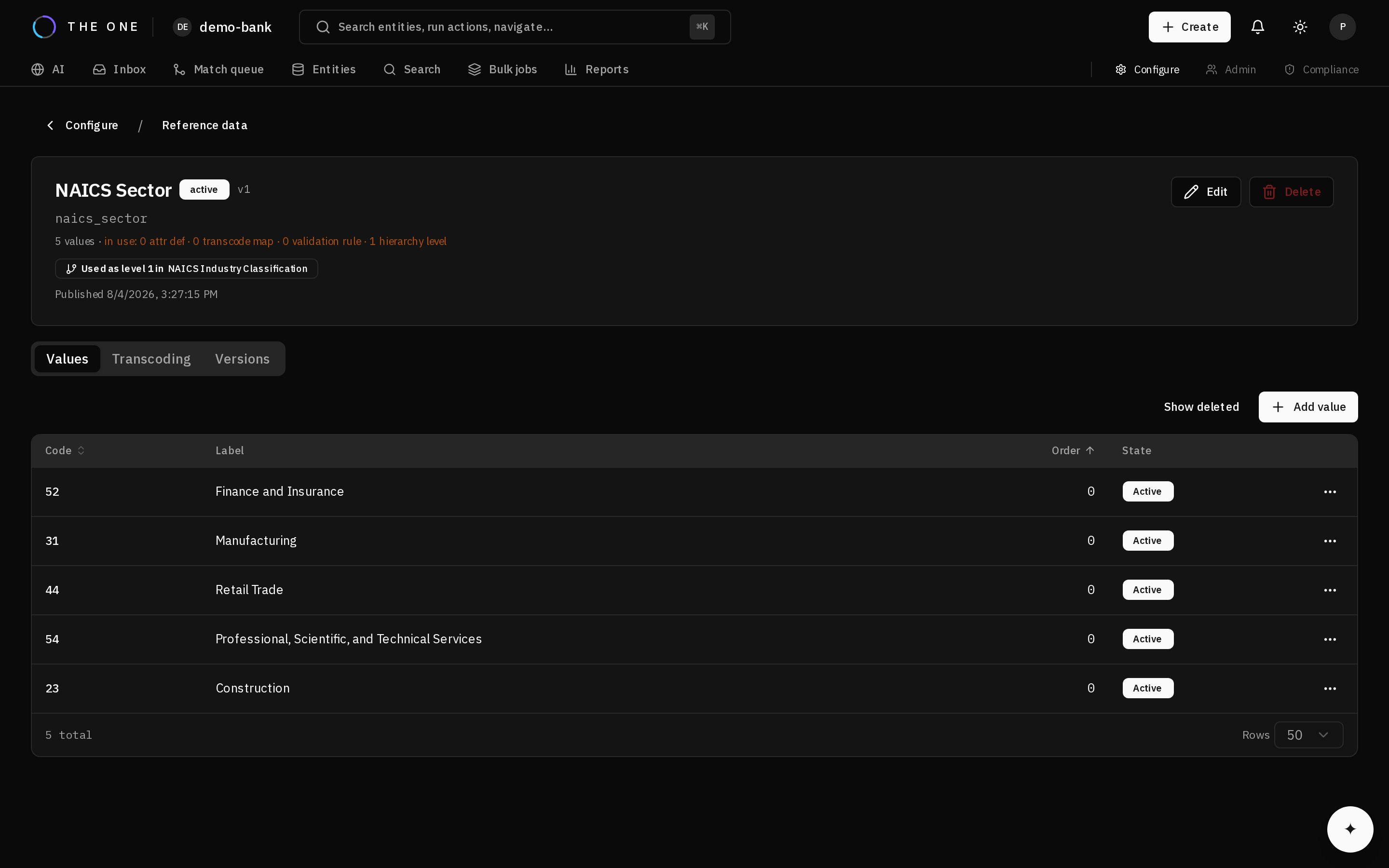

Lookup type

Field	Accepts	Default	Changeable	What it does
name	1–255 chars	—	No	Identifies the list wherever configuration refers to it.
displayName	1–255 chars	—	Yes	What people read in the console.
description	Up to 2,000 chars	—	Yes	Free text.
isHierarchical	true or false	false	Yes	Whether values may reference a parent value, forming a tree.
lifecycleState	draft, active, retired	active	Yes	Where the list is in its life. A draft list can be built up before anything binds to it; a retired one stops being offered.
versionLabel	1–32 chars	v1	No	Which published version of the list this is.
metadata	An object	{}	Yes	Your own annotations, stored and returned uninterpreted.

A new list is active unless you say otherwise. If you are assembling a vocabulary and do not want it bound to attributes mid-build, create it as draft and promote it when the values are in place.

Lookup value

Field	Accepts	Default	Changeable	What it does
lookupTypeId	A lookup type	—	No	Which list the value belongs to. A value cannot move between lists.
code	1–100 chars	—	No	What is stored on records. See the warning below.
label	1–500 chars	—	Yes	Display text. Freely changeable — the code is what records hold, so renaming a label rewrites nothing.
parentValueId	Another value, or empty	—	Yes	The parent in a hierarchical list. Empty means a root, and clearing it moves the value back to the root.
sortOrder	Integer, 0 or greater	0	Yes	Presentation order within its level.
isActive	true or false	true	Yes	Whether the value is offered for new data. Retired values keep resolving on existing records.
effectiveFrom	A timestamp	—	Yes	When the value becomes valid.
effectiveTo	A timestamp	—	Yes	When it stops being valid.
metadata	An object	{}	Yes	Your own annotations, stored and returned uninterpreted.

Labels in other languages are not a field on the value — they are a separate child resource, so one value carries one label per language without the value itself changing.

The code is permanent

code is what every record stores. It cannot be edited, and the restriction is load-bearing rather than cautious: labels are resolved by looking up the stored code in its list, so a changed code would leave every existing record pointing at a value that no longer exists — rendering a bare code where a name should be, on data that was correct when it was written.

If a code is genuinely wrong, add the correct value and migrate the records onto it. Get codes right at the start; treat them as permanent from the moment the first record uses one.

A retired code still renders

Label resolution deliberately ignores the active flag and the effective window. A retired code on a historical record must still display its label — the alternative is a record that silently loses meaning because a vocabulary moved on.

Transcoding

Setting	Notes
Lookup type	Which list the mapping targets
Source system	Whose codes are being mapped
Source value	The incoming code
Canonical value	The value it becomes

Mappings are per source system, so two systems can map different codes onto the same canonical value without ambiguity.

A mapping as the shipped banking pack authors it:

{ "lookupType":     "account_types",
  "sourceSystem":   "core_banking",
  "sourceValue":    "CHK",
  "canonicalCode":  "checking" }

The core banking system calls it CHK. The canonical list calls it checking. Neither system has to change, and nothing downstream — matching, search, reporting — ever sees CHK.

The per-source-system scoping is what makes that safe. CHK from core banking and CHECKING from a card processor both resolve to checking, while the same literal string arriving from two systems can legitimately mean two different things and still be mapped correctly.

Transcoding runs on single-record writes, not bulk

The mapping is consulted when a record is created or patched individually and the caller identified its source system. A bulk load resolves codes strictly and directly, so translate values before submitting them at volume — an unmapped code there fails the load rather than being silently converted.

Hierarchies

Concept	Notes
Hierarchy	A named levelled structure
Level	An ordered tier within it
Node	A position, referencing a lookup value
Rollup	Aggregation from a level upward

Two distinct concepts share the word "hierarchy" and are worth keeping apart:

	What it is	Used for
Value tree	A lookup value referencing a parent value	Constraining permitted values
Levelled hierarchy	A named structure with ordered levels	Classification and rollup

Deletion guard

A lookup value in use cannot be deleted. The platform reports which records reference it rather than cascading, because cascading here would silently rewrite governed data.

Next

• Manage lookup types and values

---

Last verified against commit a0765982 (2026-08-03)
